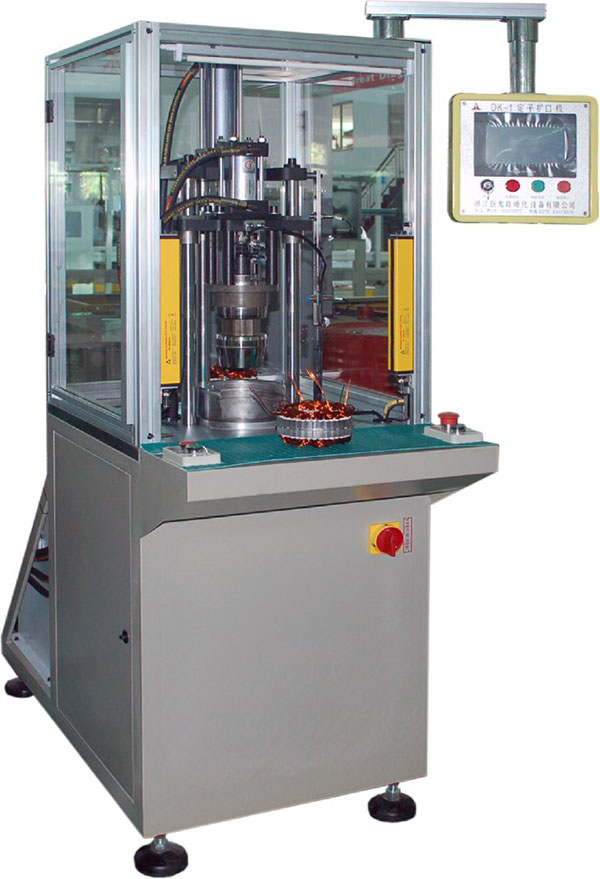

（快速換模）DK-1型 定子擴口機
DK-1 Model Stator Expanding Machine
本機是專為槽滿率較高的定子分相嵌線嵌完A相整形后嵌B相，經擴口后再嵌C相的專用設備。采用三菱PLC程控，液晶文本顯示器修改參數，一體化液壓站，雙柱單桿式液壓設計，運行速度穩定，更換工裝方便。
This machine is designed for the slot full rate of stator sub-phase embedding embedded A-phase plastic embedded B phase, after the expansion of the C-phase embedded special equipment. Mitsubishi PLC programmer, LCD text display to modify parameters, integrated hydraulic station, double column single rod hydraulic design, stable speed, easy to change tooling.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
| 液壓壓力Hydraulic Pressure |
0~7MPa |
|
總功率Total power |
3kw |
| 工作行程Working stroke | 270mm |
| 最大定子內徑Max.Stator ID |
≤Φ120 mm |
| 最小定子內徑Stator ID |
≥Φ60 mm |
| 定子疊厚Core thickness |
15~60mm |
